The heat exchangers below are 1:1 replacements for the Kelvion GBE100M

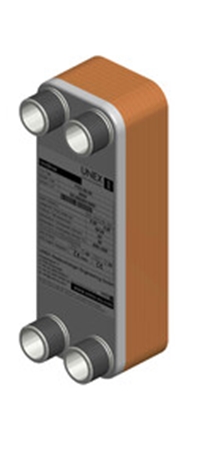

For the Kelvion GBE100M you do not need to search long for a suitable alternative: the TS10 from our own HEXCHANGE TS series is the 1:1 replacement. The port-to-port dimensions are identical (172 × 42 mm) and the unit has the same 4× G3/4" male thread connections. As a result, the TS10 fits directly onto the existing pipework, without adapters or modifications. The TS series is built from AISI 316L stainless steel plates with AISI 304 connections and is suitable up to 30 bar. The TS10 is available from 10 to 40 plates; you choose the same number of plates as your current GBE100M. A GBE100M-40 is thus replaced by the TS10-40, a GBE100M-20 by the version with 20 plates. Some versions are in stock at our warehouse in Oosterhout (the Netherlands); the rest are quickly available on request. Check the type number on your unit and look up the matching TS10 in the table above. Not sure which one you need, or would you like a price first? Call +31 (0)162 429 068 or request a no-obligation quotation; we will respond within one working day with a quote.
