The heat exchangers below are 1:1 replacements for the GEA WTT GEA-H25
Fits directly without modifying your pipework — delivered quickly from our own stock.
Installer or service company?
Installers and service companies order from their own net price list once their business account has been approved.

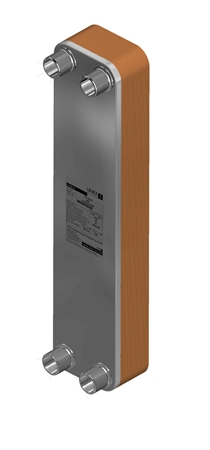

GEA WTT GEA-H25-30 can be replaced by UNEX PBG20H-30
UNEX PBG20H-30
1:1: same port-to-port dimensions (476 × 69 mm) and connection 22,35 mm solder or G1" external thread
GEA WTT GEA-H25-40 can be replaced by UNEX PBG20H-40
UNEX PBG20H-40
1:1: same port-to-port dimensions (476 × 69 mm) and connection 22,35 mm solder or G1" external thread
GEA WTT GEA-H25-50 can be replaced by UNEX PBG20H-50
UNEX PBG20H-50
1:1: same port-to-port dimensions (476 × 69 mm) and connection 22,35 mm solder or G1" external thread
GEA WTT GEA-H25-60 can be replaced by UNEX PBG20H-60
UNEX PBG20H-60
1:1: same port-to-port dimensions (476 × 69 mm) and connection 22,35 mm solder or G1" external thread
GEA WTT GEA-H25-80 can be replaced by UNEX PBG20H-80
UNEX PBG20H-80
1:1: same port-to-port dimensions (476 × 69 mm) and connection 22,35 mm solder or G1" external thread
Replacing the GEA WTT GEA-H25 with the UNEX PBG20
If you need to replace a GEA WTT GEA-H25, the UNEX PBG20 lets you carry on straight away: same port centres, same connections, so no changes to the pipework.
Port centres
476 × 69 mm
Connections
22,35 mm solder or G1" external thread
Number of plates
30 to 80 plates, 5 versions
Stock
3 of 5 versions in stock
The UNEX PBG20 is a brazed plate heat exchanger with stainless steel plates, copper brazed. In the table above, choose the version with the same number of plates as your current GEA WTT GEA-H25: it has the same length and comparable capacity and takes exactly the place of the original.
Each product page lists the matching cold and warm insulation, brackets and connection sets, so everything arrives in one shipment. Not sure? Send a photo of the nameplate via the contact form and you will receive a quote within one working day.
Frequently asked questions about replacing the GEA WTT GEA-H25
Will the UNEX PBG20 fit my GEA WTT GEA-H25 without modifications?
Yes. The replacement has the same port-to-port dimensions (476 × 69 mm) and the same connections (22,35 mm solder, G1" external thread), so the existing pipework does not need to be modified.
Is the replacement for the GEA WTT GEA-H25 available from stock?
3 of the 5 versions are in stock in our warehouse in Oosterhout, the Netherlands, and are delivered quickly. The other versions are available on request.
Which plate counts are available?
The replacements are available from 30 to 80 plates, in 5 versions. Choose the version with the same plate count as your current GEA WTT GEA-H25.
What does it cost to replace a GEA WTT GEA-H25?
Request a no-obligation quote; you will receive pricing within one working day. Call us for expert advice: +31 (0)162 429 068.
