The heat exchangers below are 1:1 replacements for the Cetetherm Cetepac CP412
Fits directly without modifying your pipework — delivered quickly from our own stock.
Installer or service company?
Installers and service companies order from their own net price list once their business account has been approved.

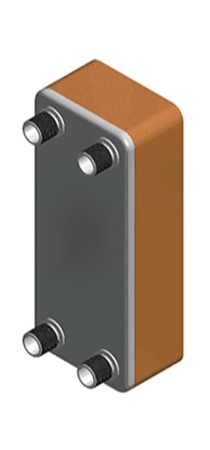

Cetetherm Cetepac CP412-10 can be replaced by HEXCHANGE TS40-10M
TS40-10M
1:1: same port-to-port dimensions (250 × 50 mm) and connection 4× G1" external thread
Different connections on your Cetetherm Cetepac CP412-10? Then choose the TS41-10M with 2× G1" + 2× G5/4" external thread.
Cetetherm Cetepac CP412-18 can be replaced by HEXCHANGE TS40-18M
TS40-18M
1:1: same port-to-port dimensions (250 × 50 mm) and connection 4× G1" external thread
Different connections on your Cetetherm Cetepac CP412-18? Then choose the TS41-18M with 2× G1" + 2× G5/4" external thread.
Cetetherm Cetepac CP412-20 can be replaced by HEXCHANGE TS40-20M
TS40-20M
1:1: same port-to-port dimensions (250 × 50 mm) and connection 4× G1" external thread
Different connections on your Cetetherm Cetepac CP412-20? Then choose the TS41-20M with 2× G1" + 2× G5/4" external thread.
Cetetherm Cetepac CP412-24 can be replaced by HEXCHANGE TS40-24M
TS40-24M
1:1: same port-to-port dimensions (250 × 50 mm) and connection 4× G1" external thread
Different connections on your Cetetherm Cetepac CP412-24? Then choose the TS41-24M with 2× G1" + 2× G5/4" external thread.
Cetetherm Cetepac CP412-30 can be replaced by HEXCHANGE TS40-30M
TS40-30M
1:1: same port-to-port dimensions (250 × 50 mm) and connection 4× G1" external thread
Different connections on your Cetetherm Cetepac CP412-30? Then choose the TS41-30M with 2× G1" + 2× G5/4" external thread.
Cetetherm Cetepac CP412-34 can be replaced by HEXCHANGE TS40-34M
TS40-34M
1:1: same port-to-port dimensions (250 × 50 mm) and connection 4× G1" external thread
Different connections on your Cetetherm Cetepac CP412-34? Then choose the TS41-34M with 2× G1" + 2× G5/4" external thread.
Cetetherm Cetepac CP412-40 can be replaced by HEXCHANGE TS40-40M
TS40-40M
1:1: same port-to-port dimensions (250 × 50 mm) and connection 4× G1" external thread
Different connections on your Cetetherm Cetepac CP412-40? Then choose the TS41-40M with 2× G1" + 2× G5/4" external thread.
Cetetherm Cetepac CP412-50 can be replaced by HEXCHANGE TS40-50M
TS40-50M
1:1: same port-to-port dimensions (250 × 50 mm) and connection 4× G1" external thread
Different connections on your Cetetherm Cetepac CP412-50? Then choose the TS41-50M with 2× G1" + 2× G5/4" external thread.
Cetetherm Cetepac CP412-70 can be replaced by HEXCHANGE TS40-70M
TS40-70M
1:1: same port-to-port dimensions (250 × 50 mm) and connection 4× G1" external thread
Different connections on your Cetetherm Cetepac CP412-70? Then choose the TS41-70M with 2× G1" + 2× G5/4" external thread.
Frequently asked questions about replacing the Cetetherm Cetepac CP412
Will the HEXCHANGE TS40 fit my Cetetherm Cetepac CP412 without modifications?
Yes. The replacement has the same port-to-port dimensions (250 × 50 mm) and the same connections, so the existing pipework does not need to be modified. Do check the connections on your current unit: the TS40 has 4× G1" male thread and the TS41 has 2× G1" + 2× G5/4" male thread — both are listed above.
Is the replacement for the Cetetherm Cetepac CP412 available from stock?
8 of the 9 versions are in stock in our warehouse in Oosterhout, the Netherlands, and are delivered quickly. The other versions are available on request.
Which plate counts are available?
The replacements are available from 10 to 70 plates, in 9 versions. Choose the version with the same plate count as your current Cetetherm Cetepac CP412.
What does it cost to replace a Cetetherm Cetepac CP412?
Request a no-obligation quote; you will receive pricing within one working day. Call us for expert advice: +31 (0)162 429 068.
