heat exchanger replacement

The heat exchangers below are 1:1 replacements for the Cetetherm Cetepac CP410

Fits directly without modifying your pipework — delivered quickly from our own stock.

Installer or service company?

Installers and service companies order from their own net price list once their business account has been approved.

Request a business account

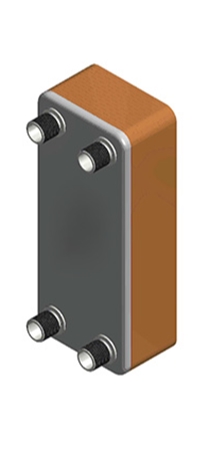

HEXCHANGE TS40-10H — replacement for Cetetherm Cetepac CP410-10

Cetetherm Cetepac CP410-10 can be replaced by HEXCHANGE TS40-10H

TS40-10H

In stock — fast delivery

1:1: same port-to-port dimensions (250 × 50 mm) and connection 4× G1" external thread

Different connections on your Cetetherm Cetepac CP410-10? Then choose the TS41-10H with 2× G1" + 2× G5/4" external thread.

Request a quote View in webshop

HEXCHANGE TS40-20H — replacement for Cetetherm Cetepac CP410-20

Cetetherm Cetepac CP410-20 can be replaced by HEXCHANGE TS40-20H

TS40-20H

In stock — fast delivery

1:1: same port-to-port dimensions (250 × 50 mm) and connection 4× G1" external thread

Different connections on your Cetetherm Cetepac CP410-20? Then choose the TS41-20H with 2× G1" + 2× G5/4" external thread.

Request a quote View in webshop

HEXCHANGE TS40-30H — replacement for Cetetherm Cetepac CP410-30

Cetetherm Cetepac CP410-30 can be replaced by HEXCHANGE TS40-30H

TS40-30H

In stock — fast delivery

1:1: same port-to-port dimensions (250 × 50 mm) and connection 4× G1" external thread

Different connections on your Cetetherm Cetepac CP410-30? Then choose the TS41-30H with 2× G1" + 2× G5/4" external thread.

Request a quote View in webshop

HEXCHANGE TS40-40H — replacement for Cetetherm Cetepac CP410-40

Cetetherm Cetepac CP410-40 can be replaced by HEXCHANGE TS40-40H

TS40-40H

In stock — fast delivery

1:1: same port-to-port dimensions (250 × 50 mm) and connection 4× G1" external thread

Different connections on your Cetetherm Cetepac CP410-40? Then choose the TS41-40H with 2× G1" + 2× G5/4" external thread.

Request a quote View in webshop

HEXCHANGE TS40-50H — replacement for Cetetherm Cetepac CP410-50

Cetetherm Cetepac CP410-50 can be replaced by HEXCHANGE TS40-50H

TS40-50H

In stock — fast delivery

1:1: same port-to-port dimensions (250 × 50 mm) and connection 4× G1" external thread

Different connections on your Cetetherm Cetepac CP410-50? Then choose the TS41-50H with 2× G1" + 2× G5/4" external thread.

Request a quote View in webshop

HEXCHANGE TS40-60H — replacement for Cetetherm Cetepac CP410-60

Cetetherm Cetepac CP410-60 can be replaced by HEXCHANGE TS40-60H

TS40-60H

In stock — fast delivery

1:1: same port-to-port dimensions (250 × 50 mm) and connection 4× G1" external thread

Request a quote View in webshop

HEXCHANGE TS40-70H — replacement for Cetetherm Cetepac CP410-70

Cetetherm Cetepac CP410-70 can be replaced by HEXCHANGE TS40-70H

TS40-70H

In stock — fast delivery

1:1: same port-to-port dimensions (250 × 50 mm) and connection 4× G1" external thread

Different connections on your Cetetherm Cetepac CP410-70? Then choose the TS41-70H with 2× G1" + 2× G5/4" external thread.

Request a quote View in webshop

The TS40 from our own HEXCHANGE TS series replaces the Cetetherm Cetepac CP410 1:1: identical port-to-port dimensions (250 × 50 mm) and the same 4× G1" male thread connections. The replacement therefore takes the exact place of the CP410, without changes to the existing pipework. Within the TS series there are two connection variants: the TS40 has 4× G1" male thread, the TS41 has 2× G1" and 2× G5/4" male thread. So take a look at the connections of your current unit and choose the matching variant; you will find both among the versions above. The series is built from AISI 316L stainless steel plates with AISI 304 connections and is suitable for working pressures up to 30 bar. For the CP410 the range runs from 10 to 70 plates — keep the plate count of your current unit; a Cetepac CP410-30 corresponds to the TS40-30H. Some versions are in stock in our warehouse in Oosterhout (the Netherlands); the rest are available quickly on request. Call +31 (0)162 429 068 for advice or request a no-obligation quote; you will have a price proposal within one working day.

Frequently asked questions about replacing the Cetetherm Cetepac CP410

Will the HEXCHANGE TS40 fit my Cetetherm Cetepac CP410 without modifications?

Yes. The replacement has the same port-to-port dimensions (250 × 50 mm) and the same connections, so the existing pipework does not need to be modified. Do check the connections on your current unit: the TS40 has 4× G1" male thread and the TS41 has 2× G1" + 2× G5/4" male thread — both are listed above.

Is the replacement for the Cetetherm Cetepac CP410 available from stock?

7 of the 7 versions are in stock in our warehouse in Oosterhout, the Netherlands, and are delivered quickly. The other versions are available on request.

Which plate counts are available?

The replacements are available from 10 to 70 plates, in 7 versions. Choose the version with the same plate count as your current Cetetherm Cetepac CP410.

What does it cost to replace a Cetetherm Cetepac CP410?

Request a no-obligation quote; you will receive pricing within one working day. Call us for expert advice: +31 (0)162 429 068.
