heat exchanger replacement

The heat exchangers below are 1:1 replacements for the Alfa Laval CBM76

Fits directly without modifying your pipework — delivered quickly from our own stock.

Installer or service company?

Installers and service companies order from their own net price list once their business account has been approved.

Request a business account

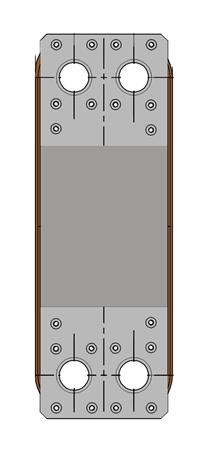

HEXCHANGE TS80-20 SAE — replacement for Alfa Laval CBM76-20H

Alfa Laval CBM76-20H can be replaced by HEXCHANGE TS80-20 SAE

TS80-20 SAE

In stock — fast delivery

1:1: same port-to-port dimensions (519 × 92 mm) and connection SAE

Request a quote View in webshop

HEXCHANGE TS80-40 SAE — replacement for Alfa Laval CBM76-40H

Alfa Laval CBM76-40H can be replaced by HEXCHANGE TS80-40 SAE

TS80-40 SAE

In stock — fast delivery

1:1: same port-to-port dimensions (519 × 92 mm) and connection SAE

Request a quote View in webshop

HEXCHANGE TS80-60 SAE — replacement for Alfa Laval CBM76-60H

Alfa Laval CBM76-60H can be replaced by HEXCHANGE TS80-60 SAE

TS80-60 SAE

In stock — fast delivery

1:1: same port-to-port dimensions (519 × 92 mm) and connection SAE

Request a quote View in webshop

HEXCHANGE TS80-80 SAE — replacement for Alfa Laval CBM76-80H

Alfa Laval CBM76-80H can be replaced by HEXCHANGE TS80-80 SAE

TS80-80 SAE

Available on request

1:1: same port-to-port dimensions (519 × 92 mm) and connection SAE

Request a quote View in webshop

HEXCHANGE TS80-100 SAE — replacement for Alfa Laval CBM76-100H

Alfa Laval CBM76-100H can be replaced by HEXCHANGE TS80-100 SAE

TS80-100 SAE

In stock — fast delivery

1:1: same port-to-port dimensions (519 × 92 mm) and connection SAE

Request a quote View in webshop

The same dimensions, the same connections, ready to mount: the HEXCHANGE TS80 replaces the Alfa Laval CBM76 1:1. The port-to-port dimensions are identical (519 × 92 mm), and because we match the SAE versions of the TS80 to the CBM76, the existing pipework remains untouched. The TS80 comes from our own TS series and is built from AISI 316L stainless steel plates with AISI 304 connections, suitable for pressures up to 30 bar. For the CBM76, versions from 20 to 100 plates are available. Look up your type number in the table above; there you will see, for example, the TS80-20 SAE as the replacement for the Alfa Laval CBM76-20H. Some versions are in stock in Oosterhout (the Netherlands); the rest we deliver quickly on request. This keeps the downtime of your installation to a minimum. Need help determining the right version? Call +31 (0)162 429 068 or request a no-obligation quote — you will receive a price proposal from us within one working day.

Frequently asked questions about replacing the Alfa Laval CBM76

Will the HEXCHANGE TS80 fit my Alfa Laval CBM76 without modifications?

Yes. The replacement has the same port-to-port dimensions (519 × 92 mm) and the same connections (SAE), so the existing pipework does not need to be modified.

Is the replacement for the Alfa Laval CBM76 available from stock?

4 of the 5 versions are in stock in our warehouse in Oosterhout, the Netherlands, and are delivered quickly. The other versions are available on request.

Which plate counts are available?

The replacements are available from 20 to 100 plates, in 5 versions. Choose the version with the same plate count as your current Alfa Laval CBM76.

What does it cost to replace a Alfa Laval CBM76?

Request a no-obligation quote; you will receive pricing within one working day. Call us for expert advice: +31 (0)162 429 068.
